A CONTEXT-BASED NAVIGATION PARADIGM

FOR ACCESSING WEB DATA



Wilfried Lemahieu

K.U.Leuven - Department of Applied Economic Sciences
Naamsestraat 69
3000 Leuven, Belgium
Email: Wilfried.Lemahieu@econ.kuleuven.ac.be



KEYWORDS

Hypermedia, Context-based navigation, Guided tours, Dynamic link generation



ABSTRACT

This paper presents a context-based navigation paradigm, so as to overcome the phenomenon of user disorientation in a Web environment. Conventional navigation along static links is complemented by run-time generated guided tours, which are derived dynamically from the context of a user’s information requirements. The result is a two-dimensional navigation paradigm, which reconciles complete navigational freedom and flexibility with a measure of linear guidance. Consequently, orientation is improved through reduced cognitive overhead and an increased sense of document coherence.



1. INTRODUCTION

The MESH hypermedia framework as deployed in [ 19] proposes a structured approach to both data modeling and navigation, so as to overcome two crucial problems in the field: poor maintainability and user disorientation. To start with, this paper portrays the predicaments surrounding hypermedia navigation. Next comes a brief overview of MESH’s data model and implementation framework. The body of the paper discusses MESH’s context-based navigation paradigm in detail. A last section makes comparisons to related work and formulates conclusions.



2. THE HYPERMEDIA NAVIGATION PROBLEM

2.1 Navigation versus querying

Hypermedia systems stand out amid other information systems in that data access is accomplished through navigation, rather than querying. Their appeal is based upon the ability to store complex, cross-referenced bodies of information as a network of nodes and links, which can be explored according to the user’s personal preferences. Therefore, hypermedia data retrieval embraces a notion of location. Data accessibility depends on a user’s position in the network, denoted as the current node [20]. Manipulation of this position gradually reveals links to related information. The environment that really brought hypermedia to the public eye is undoubtedly the World Wide Web [ 2] , promoting the hypertext paradigm as the primary access mode to all nodes, implemented as HTML pages, on Internet-connected networks around the world.

As initially pointed out in [ 11] , efficient hypermedia data retrieval requires a search mechanism to complement navigational access. Therefore, query-based applications (e.g. search engines) have established themselves in the Web as well. However, navigation remains an utterly valuable asset to further explore the available information, once an initial starting point has been obtained by means of a query.



2.2 Navigation and (dis)orientation

As a downside, the explorative, non-linear nature of hypermedia navigation imposes a heavy processing load upon the end user, referred to as cognitive overhead [ 7] ; [28], particularly in such an immense environment as the Web. The stringent problem of cognitive overhead effecting into user disorientation and losing one’s chain of thought is known as the ‘lost in hyperspace’ phenomenon [12]; [26].

The above has been thoroughly discussed in literature, e.g. [3]; [6]; [27]; [32]. More recently, [ 23] distinguished between hyperspace and conceptual space. The former refers to the hypermedia structure itself, whereas the latter involves the actual concepts and interrelations represented in the hypermedia system. A close correlation between hyperspace and conceptual space is claimed to significantly advance comprehension and orientation. In addition, [ 36] formulates design principles such as the use of typed links, higher-order information units, a stable screen layout and visual cues, to increase document coherence and reduce cognitive overhead. These principles are realized in MESH’s data model, which is briefly reviewed in section 3.1.

With respect to navigation, the same authors suggest to provide information about the context in which a node is displayed. This conveys a sense of continuity across separate nodes and reduces the impression of information fragmentation. Moreover, navigation facilities are to cover aspects of direction and distance and should offer the reader maximal support to identify his current position within the hypermedia structure. Also, selection of the next navigation step should be made as easy as possible. The latter principles provide the fundaments to MESH’s navigation paradigm. Another key ingredient is the notion of guided tours, as introduced below.



2.3 Linearity and guided tours

To highlight the advantages of hypermedia navigation, comparisons are often made to books. Books are said to be linear information systems; their pages are organized uni-dimensionally, in a fixed order. Hypertext offers the possibility to break through this linear constraint and organize data in more complex structures, to be accessed following different possible paths, depending on the user’s preferences and interests.

Cognitive overhead, however, is significantly lower in a linear structure, be it at the cost of navigational freedom. Linearity provides a leading thread that facilitates orientation and prevents the reader from getting lost [17]. The latter is acknowledged in [27]; [37], where linearity is re-introduced in so-called guided tours, chaining together all nodes pertaining to a common subject with forward/backward links.

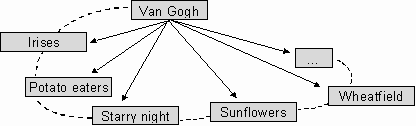

E.g. the typical hypermedia links (represented as arrows) between Van Gogh and each of his paintings can be complemented by a guided tour (represented as dotted lines) along these paintings

Unfortunately, such hard-coded guided tours have proven to be inflexible and difficult to maintain. Moreover, they introduce a measure of redundancy into the hyperbase, as a guided tour typically reflects a communal property among its participating nodes. However, the property of ‘being painted by the same artist’ is already established within the respective links from each painting to its artist. Thus, it would be possible to infer this knowledge and generate such guided tour at run-time, without burdening hyperbase maintainability.

MESH’s improved navigation paradigm, referred to as context-based navigation, reconciles navigational freedom with the ease of linear navigation. In this manner, the concept of at run-time generated guided tours offers a linear path throughout (part of) the hyperbase to reduce cognitive overhead and user disorientation.



3. THE MESH HYPERMEDIA FRAMEWORK

MESH is an acronym for Maintainable, End user friendly, Structured Hypermedia. Elements from both entity-relationship [5] and object-oriented [ 15] ; [ 25] ; [29]; [ 33] modeling, along with proprietary hypermedia concepts, are combined into a framework that should improve both maintainability and end user orientation. This section briefly discusses MESH’s data model and implementation framework. The body of this paper is dedicated to its navigation paradigm.



3.1 The MESH data model

The data model is looked upon as an inheritance hierarchy of node types, bestowing nodes representing similar real-world entities with a uniform layout. The latter is abstracted on type level in layout templates.

So as to characterize node interaction, each node type is equipped with a set of link types. These classify the links according to the semantic interpretation of the relations they embody. The properties of a link type are its domain, minimum cardinality (optional/mandatory), maximum cardinality (unique/non-unique) and inverse link type. Semantics attributed within the data model permit automated type checking and integrity constraints. Moreover, node design is greatly facilitated by the abstract-level node and link type definitions, cardinality constraints and layout templates. These can be inherited and refined, but their constraints may never be weaker than the ones imposed at a higher level.

Whereas the data model as depicted thus far is inherently static, with each node being an instance of exactly one "most specific type", which remains unchanged during the whole of the node’s lifetime, the aspect construct offers a means to overcome modeling restrictions imposed by a rigid subtyping hierarchy. Aspect descriptors provide for additional node classification criteria, such that affiliated properties (i.e. both specific layout and link types) can be bundled into aspects, attributed to temporary and non-disjoint sets of nodes. At run-time, a node’s features can be altered through manipulation of its aspect descriptor values.

Nevertheless, the inheritance hierarchy remains the backbone of the hypermedia model, with aspects themselves being defined as a node type property that can be attributed within the hierarchy and be inherited and refined at lower levels. In this respect, aspects can be seen as node type building blocks that describe one specific "aspect" of a node.

As a last issue, link subtyping is further elaborated upon. In contrast to standard O.O. practice, link types are full-fledged abstract types and can be equally subject to subtyping. The latter can be either in parallel with or independent of node classification. Link types are deemed extremely important, as they not only enforce semantic constraints but also interface between nodes, such that these can be coded and updated independently of one another. Moreover, they define navigational actions on an abstract level, which provides the key to context-based navigation.



3.2 A generic application framework

The information content and navigation structure of the nodes are separated and stored independently. The resulting system consists of three types of components: the nodes, the linkbase/repository and the hyperbase engine. In [ 19] , a platform-independent implementation framework was provided, but all subsequent prototyping is explicitly targeted at a Web environment.

A node can be defined as a static page or a dynamic object, using either HTML or XML. Its internal content is shielded from the outside world by the indirection of link types playing the role of a node’s interface. Optionally, it can be endowed with the intelligence to tune its reaction to the context in which it is accessed. Indeed, by integrating a node type’s set of attributed link types as a parameter in its layout template’s presentation routines, the multimedia objects that are most relevant to this particular link type can be made current upon node access, hence the so-called context-sensitive visualization principle.

Since a node is not specified as a necessarily searchable object, linkage information cannot be embedded within a node’s body. Links, as well as meta data about node types, link types, aspect descriptors and aspects are captured within a searchable linkbase/repository to provide the necessary information pertaining to the underlying hypermedia model, both at design time and at run-time. This repository is implemented in a relational database environment. Only here, references to physical node addresses are stored, these are never to be embedded in a node’s body. All external references are to be made through location independent node ID’s.

The hyperbase engine is conceived as a server-side script that accepts link (type) selections from the current node, retrieves the correct destination node, keeps track of session information and provides facilities for generating maps and overviews. Since all relevant linkage and meta information is stored in the relational DBMS, the hyperbase engine can access this information by means of simple, pre-defined and parameterized database queries, i.e. without the need for searching through node content.



4. MESH’S CONTEXT-BASED NAVIGATION PARADIGM

4.1 A guided tour as derived from the current context

In conventional hypermedia applications, the current node is the only variable that determines which information is accessible at a given moment; navigation is only possible to nodes that are linked to this current node. Its value changes with each navigation step as it represents the immediate focus of the user’s attention.

MESH introduces the current context as a second, longer-term variable that ‘glues’ the various visited nodes together and provides a background about which common theme is being explored. The current context is defined as the combination of a context node and a context link type. The context node represents the subject around which the user’s broader information requirements ‘circle’. The nature of the relationship involved is depicted by the context link type.

A guided tour derives from the current context. Therefore, MESH discriminates between direct and indirect links. A direct link represents a lasting relation between two nodes. Direct links are typed and reflect the underlying conceptual data model. Because they are permanent and context-independent, they are stored explicitly into the hyperbase and are always valid. E.g. the node Sunflowers is directly linked to the Van Gogh node.

An indirect link between two nodes indicates that they share relevancy to a common third node. The latter denotes the context within which the indirect link is valid. As indirect links not only reflect the data model, but also depend on a run-time variable, the current context, they cannot be stored within the hyperbase. They are to be created dynamically at run-time, as inferred from a particular context. E.g. an indirect link between Sunflowers and Wheatfield is only relevant when exploring information related to Van Gogh.

A guided tour is defined as a path of indirect links along all nodes relevant to the current context. These nodes are directly linked to the context node (through instances of the context link type) and indirectly to their predecessor and successor in the tour. As they are chained into a linear structure, a logical order should be devised in which the subsequent tour nodes can be presented to the user. The most obvious criterion is in alphabetical order of a node descriptor field. More powerful alternatives are discussed in [ 19] .

E.g. the context Van Gogh.has-painted yields a guided tour among the nodes {Irises, Potato eaters, Starry night, Sunflowers, Wheatfield, …} with Van Gogh as the context node and has-painted as the context link type.

Note that the discrepancy between guided tour and context can be compared to the traditional duality in representing a circle either through the points on its circumference, or through its center and a radius. Guided tours are not stored within the hyperbase as an enumeration of participating nodes, but are calculated at run-time from the current context. Although sequential by nature, such tours do not restrict the user’s navigational freedom, as long as sufficient flexibility is offered in choosing which tour to follow. The linearity lies in ‘following’ the tour. The freedom lies in starting one.



4.2 Nested tours

Contexts, and consequently guided tours, can exist in ‘layers’. E.g. from the current tour’s current node Sunflowers, one is able to start a new tour, Sunflowers.reviews, nested in the former. A new context emanates, with Sunflowers as the new context node, resulting in new indirect links. When this most recent tour has been finished, it is possible to restore the former context and resume the first tour, of which Sunflowers again becomes the current node.

 As such, it is possible to ‘delve’ into a subject and have multiple open tours, nested within one another, where the context node of one tour is the current node of the tour it is nested in. Navigation along indirect links is invariably carried out within the "deepest", i.e. most recently started tour. Continuing a tour on a higher level is only possible if all tours on a lower level have been either completed or disbanded.



4.3 Navigational actions

Navigational actions can be classified according to two dimensions. First, there is moving forward and backward within the current tour, along indirect links. Second, and orthogonal to this, there is the option of moving up or down along direct links, closer to or further away from the session’s starting point. Additionally, one can distinguish between actions that change the current context and actions that only influence the current node.





4.3.1 Moving forward/backward within the current tour

Moving forward or backward in a guided tour along indirect links, results in the node following/preceding the current node being accessed to become the new current node. The current context is unaffected.

Indirect links are not explicitly anchored. A node should only return a move forward or move backward command, independently of the current tour. It’s the hyperbase engine’s task to map this to the correct destination node.



4.3.2 Moving down

Moving down implies an action of ‘digging deeper’ into the subject matter, moving away from the starting point. This is accomplished through selection from the current node of either a direct link type or link instance. In the case of a unique destination node, the result is the latter node being accessed. In the case of a set of destination nodes, the outcome is a new nested tour being started.



4.3.2.1 Selection of a link instance

A link instance is defined as a (source node, destination node) tuple. Selection of a link instance l from the source node ns results in its destination node nd being accessed:

ns.l := {ndô l = (ns, nd)}

As a link instance corresponds to a single tuple, the outcome is of course a singleton, hence a single node, being accessed. E.g. selection of the link (Sunflowers, National Gallery) from the current node Sunflowers, induces an access to the node National Gallery:

Sunflowers.(Sunflowers, National Gallery) := {National Gallery}

Anchoring link instances is to be avoided where possible since such anchors cannot be managed on an aggregate (i.e. node type) level, which is unfavorable from a maintenance point of view. Luckily, thanks to the use of typed links, along with laid down cardinality restrictions, references to link instances can often be replaced by a single reference to a link type.



4.3.2.2 Selection of a link type

Indeed, MESH aggregating single link instances into link types, yields the opportunity of anchoring and consequently selecting a complete link type from a given source node. Selection of a link type L from a source node ns yields a set of all destination nodes nd of tuples representing link instances of L with ns as the source node, i.e. all nodes that are linked to the current node by the selected link type:

ns.L := {ndô (ns, nd) Î L}

Depending on maximum cardinality of the link type, the result may either still be a single node access or a change in context.



4.3.2.2.1 Selection of a unique link type

In the case where a unique link type is selected, the resulting "set" of nodes will always be a singleton, since a unique link type can have only one instance per source node. E.g. selecting the link type exhibited-in from the node Sunflowers has the singleton {National Gallery} as a result.

Sunflowers.exhibited-in := {National Gallery}

Note that, for a unique link type, anchoring link type or link instance are equivalent; selection of a single link instance or the complete link type leads to the same single destination node for any source node. Therefore, such links should only be anchored on type level, which offers a bonus in maintenance, as such anchor needn’t be replaced when the destination node is altered for a given source node. Moreover, as even static HTML pages are parsed in MESH, a link type’s anchor can still be tailored at run-time to reflect the destination node’s name.

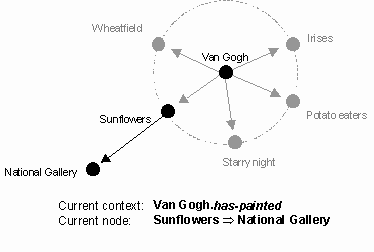

The result of selecting a unique link type (or a link instance) is a node directly linked to the current node becoming the new current node. Other parameters are unaffected.

4.3.2.2.2 Selection of a non-unique link type

If the selected link type is non-unique, the resulting set may contain multiple destination nodes. E.g. with Sunflowers as the current node, selection of the link type reviews generates a collection of nodes to-be-accessed:

Sunflowers.reviews := {review#1, review#2, review#3, …}

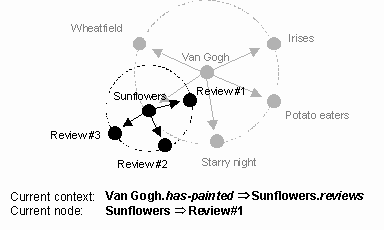

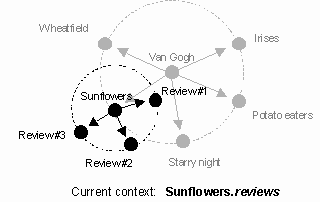

The current node Sunflowers is denoted as the new context node. The non-unique link type reviews defines the context link type, which yields a new nested tour: Sunflowers.reviews. The first review is accessed to become the new current node. Such context change reflects the user’s decision to concentrate on the current node as a new topic of interest. All indirect links are destroyed and redefined around this new context.

4.3.3 Moving up

Moving up reverses the latest move down action. If the latter involved a unique link type or link instance selection, the effect of this link selection is cancelled. If the latest link type selected was non-unique, the move up action results in the reestablishment of the previous context and the cancellation of the tour generated through this most recent link type selection. The previous context’s context node and indirect links are restored. The most recent context node becomes the current node.



4.4 Issuing navigational actions on the level of a complete tour

The practice of node and link typing allows for casting navigational actions to a whole class of nodes, regardless of the actual instance they are applied to. In this way, selections of link types that exist at a sufficiently high level of abstraction can be imposed upon every single node belonging to a tour. E.g. in the context of Van Gogh.has-painted, a painting# x.reviews selection can be issued once on tour level, with additional (nested) tours being generated automatically for each node participating in the Van Gogh.has-painted tour.

If these tours in their turn include navigational actions on type level, a complex navigation pattern results, which can be several levels deep. Again, forward and backward links always apply to the current tour, i.e. to the open tour at the ‘deepest’ level.



4.5 A context-based history list

MESH exploits a context-based history list to account for current tour positions in open tours and to keep track of navigational actions on tour level, so as to aptly impose such actions upon the successive nodes in each newly started tour.

The sequence of navigational actions to be cast upon the respective layers of guided tours can be depicted in a tree, with each branch representing an abstract navigational action, i.e. a link type selection. Each node in the tree symbolizes the collection of hypermedia nodes accessed through the navigational action represented by the incoming branch. The outgoing branches each stand for a single navigational action, to be applied to all hypermedia nodes in the collection represented by the tree node. The root node denotes the session’s starting point.

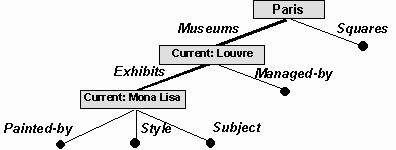

E.g. with Paris as the starting point, the link types museums and squares are selected. For each node in the Paris.museums tour, a nested tour museum# x.exhibits is generated and the destination of the unique link type managed-by is visited. For all paintings belonging to one of the museum# x.exhibits tours, the respective unique link types painted-by, style and subject are issued. There are two nested open tours, with Louvre and Mona Lisa as respective current nodes.

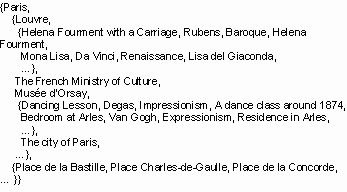

All information about a complete navigation session can be represented in a compact fashion, based solely on high-level navigational actions and currency indications of open tours, without every single node participating in the various tours being retained. Consequently, such context-based history list will be much shorter and yet more powerful than its traditional counterpart. Indeed, it offers the ability of bookmarking not only single nodes, but of complete navigational situations, allowing to swiftly recapitulate results of earlier exploration. These can be regenerated by applying the navigational actions represented in the tree according to a depth-first strategy, with the desired sequence of nodes as a result:

Note that the tree representation is not only useful for storing a navigational situation, but also allows for visualizing a user’s current situation in a highly compact manner. In this respect, the move up and move down actions indeed correspond to moving up or down in the graph.



5. CONCLUSIONS

5.1 Benefits of MESH’s proposed navigation paradigm

MESH’s context-based navigation paradigm implements the design principles referred to in section 2.2 by means of dynamic linear paths throughout the information space, so as to reduce cognitive overhead. A sense of direction and position is induced, both within a single tour and orthogonally to the latter. In this respect, the comprehensive, tree-shaped history list representation imposes a flexible hierarchical view upon the hyperbase structure, which can be visualized as an adaptive map. Through the specification of navigational actions on tour level, complex navigation patterns can be applied to all nodes in a tour without additional effort.

The context concept, as a representation of what various nodes have in common, also positively influences document coherence, especially in combination with context sensitive node visualization. A final benefit is the ability to bookmark a complete navigational situation in an utterly compact manner, with the possibility of it being resumed later on, from the exact point where it was left.



5.2 A comparison to related work

Other hypermedia approaches such as EORM [18], RMM [13]; [14], HDM [10] and OOHDM [30]; [31] also feature specific topologies such as guided tours, indexes etc. A fundamental difference is that these are conceived as explicit design components, requiring author input for query definitions, node collections and forward/backward links. In MESH, only direct links are to be explicitly authored. Maintenance is accomplished rather effortlessly, as they are stored separately in a relational database. Moreover, they can be anchored on type level, e.g. a painted-by anchor being defined only once for the node type painting, instead of for each painting instance. Neither guided tours nor indexes require any maintenance or design effort, as the author is not even engaged in their realization. They are generated at run-time upon user request. For that purpose, the appropriate queries are inferred automatically by the hyperbase engine, with the context node and context link type as input parameters.

The characteristic of guided tours combining navigation with a query-element can also be found in the StrathTutor system [ 24] . However, whereas the latter’s queries are based on a predefined set of node attributes, MESH’s criteria are its direct links. Hence (the semantics of) a node’s relations to neighboring nodes model its properties and determine its inclusion in guided tours.

Set-based hypermedia paradigms such as CHM [ 8] ; [ 9] , the HM-Data Model [ 21] ; [ 22] ; [ 34] and Hyper-G [ 1] equally provide inherent support for navigation in two orthogonal planes; inside a collection and across collection boundaries. Their current container and current member concepts are comparable to MESH’s current context and current node respectively. A drawback, however, is that they do severely limit navigational freedom. Moreover, they lack a firm underlying data model with typed node interrelations. Likewise, the opportunity of defining abstract navigational actions on tour level is a feature that is exclusive to MESH.

In Trellis [ 35] , the concept of nested sub-systems induces a browsing behavior in "levels" that is somewhat similar to set-based navigation. Unfortunately, the result is a pre-enforced hierarchic structure, instead of a dynamic one as in MESH. Interestingly, the Petri-net paradigm is capable of representing a wealth of browsing semantics such as guided tours, concurrent browsing paths, multiple current nodes and personalized views. Again, however, such constructs are to be authored explicitly, as constraints upon the feasible Petri-net state transitions.

While featuring dynamic node content as well as dynamic links, MESH intentionally differs from typical adaptive hypermedia systems as reviewed in [4]. In so-called "direct guidance" systems, adaptation is based on a user model to provide for tailored guided tours. E.g. Webwatcher [16] suggests interesting links based on experience with previous users’ browsing behavior and a set of keywords that has been provided at the beginning of the current user’s session. One is "guided" along potentially relevant pages, with the system actually taking over navigation control, at least partially. On the other hand, MESH’s dynamism is targeted at providing a structured perspective upon the information space, supporting the user in efficiently pursuing his interests, rather than restricting his freedom. A guided tour of indirect links is invariably the result of a direct link type selection by the user: the initiative fully resides with the latter.

Therefore, adaptive hypermedia techniques could be seen as a complement to MESH, rather than a substitute. Indeed, especially in large hyperbases, with an oversupply of outgoing link anchors for a given source node, it could be required to impose dynamic behavior upon these direct links as well. A user profile could then be applied to highlight the most relevant direct link (type) anchors and hide irrelevant ones. Hence, whereas MESH’s current dynamism entails the generation of guided tours in accordance with the user’s actions, the latter could be assisted by adaptive techniques suggesting which action to take. A related ongoing research issue is the possibility of the hypermedia system taking the initiative of reorganizing and optimizing the nested context structure emanating from the user’s actions. In this respect, MESH’s rich modeling abstractions with typed nodes, links and aspects, as well as its context notion, could provide valuable semantics as additional input to existing adaptation techniques.



REFERENCES

[ 1] K. Andrews, F. Kappe and H. Maurer 1995, The Hyper-G Network Information System, Journal of Universal Computer Science, Vol. 1, No. 4

[ 2] T. Berners-Lee and R. Cailliau 1994, The World-Wide Web, Commun. ACM Vol. 37, No. 8

[3] M. Bernstein 1991, The Navigation Problem Reconsidered, Hypertext/Hypermedia Handbook, E. Berk and J. Devlin Eds., McGraw-Hill, New York

[4] P. Brusilovsky 1996, Methods and techniques of adaptive hypermedia, User Modeling and User-Adapted Interaction Vol. 6, No. 2-3

[5] P. Chen 1976, The entity-relationship approach: Toward a unified view of data, ACM Trans. Database Syst. Vol. 1, No. 1

[6] A. Cockburn and S. Jones 1996, Which way now? Analyzing and easing inadequacies in WWW navigation, International Journal of Human-Computer Studies No. 45

[7] J. Conklin 1987, Hypertext: An Introduction and Survey, IEEE Computer Vol. 20, No. 9

[ 8] E. Duval, H. Olivié, P. Hanlon and D. Jameson 1995, HOME: An Environment for Hypermedia Objects, Journal of Universal Computer Science Vol. 1, No. 5

[ 9] E. Duval, H. Olivié and N. Scherbakov 1995, Contained Hypermedia, Journal of Universal Computer Science, Vol. 1, No. 10

[10] F. Garzotto, P. Paolini, and D. Schwabe 1993, HDM - A Model-Based Approach to Hypertext Application Design, ACM Trans. Inf. Syst. Vol. 11, No. 1

[11] F. Halasz 1988, Reflections on NoteCards: Seven Issues for Next Generation Hypermedia Systems, Commun. ACM Vol. 31, No. 7

[12] N. Hammond 1993, Learning with Hypertext: Problems, principles and Prospects, HYPERTEXT a psychological perspective, C. McKnight, A. Dillon and J. Richardson Eds., Ellis Horwood, New York

[13] T. Isakowitz, E. Stohr and P. Balasubramanian 1995, RMM, A methodology for structured hypermedia design, Commun. ACM Vol. 38, No. 8

[14] T. Isakowitz, A. Kamis and M. Koufaris 1998, The Extended RMM Methodology for Web Publishing, Working Paper IS-98-18, Center for Research on Information Systems (Currently under review at ACM Trans. Inf. Syst.)

[15] I. Jacobson , M. Christerson, P. Jonsson and G. Övergaard 1992, Object-Oriented Software Engineering, Addison-Wesley, New York

[16] T. Joachims, D. Freitag and T. Mitchell 1996, Webwatcher: A Tour Guide for the World Wide Web, CMU research report

[17] D. Jonassen 1990, Semantic net elicitation: tools for structuring hypertext, Hypertext: State of the Art, R. McAleese and C. Green Eds., Intellect, Oxford

[18] D. Lange 1994, An Object-Oriented design method for hypermedia information systems, Proceedings of the twenty-seventh Hawaii International Conference on System Sciences (HICSS-27), Hawaii

[19] W. Lemahieu 1999, Improved Navigation and Maintenance through an Object-Oriented Approach to Hypermedia Modelling, Doctoral dissertation (unpublished), Katholieke Universiteit Leuven, Leuven

[20] D. Lucarella 1990, A Model For Hypertext-Based Information Retrieval, Proceedings of the European Conference on Hypertext, Versailles

[ 21] H. Maurer and N. Scherbakov 1992, The HM Data Model, IIG Report, Graz

[ 22] H. Maurer, N. Scherbakov and A. Nedoumov 1995, HM-CARD: A Second Generation Hypermedia Authoring Tool, Proceedings of LAIR-MIPRO ’95, Opatija

[ 23] M. Mayes 1994, A method for evaluating the efficiency of presenting information in a hypermedia environment, Computer in Education Vol. 18, No. 1

[ 24] J. Mayes, M. Kibby and H. Watson 1988, StrathTutor: the development and evaluation of a learning-by-browsing system on the Macintosh, Computers and Education, No. 12

[ 25] B. Meyer 1997, Object-Oriented Software Construction, Second Edition, Prentice Hall Professional Technical Reference, Santa Barbara

[26] J. Nielsen 1990, The Art of Navigating Through Hypertext, Commun. ACM Vol. 33, No. 3

[27] J. Nielsen 1990, Navigating through Large Information Spaces, Hypertext and Hypermedia, Academic Press, Boston

[28] C. Ramaiah 1992, An Overview of Hypertext and Hypermedia, International Information, Communication & Education Vol. 11, No. 1

[29] J. Rumbaugh, M. Blaha, W. Premerlani, F. Eddy and W. Lorensen 1991, Object Oriented Modelling and Design, Prentice Hall, Englewood Cliffs

[30] D. Schwabe, G. Rossi and S. Barbosa 1996, Systematic Hypermedia Application Design with OOHDM, Proceedings of the seventh ACM conference on hypertext (Hypertext ’96), Washington DC

[31] D. Schwabe and G. Rossi 1998, Developing Hypermedia Applications using OOHDM, Proceedings of the ninth ACM Conference on Hypertext (Hypertext '98), Pittsburgh

[32] M. Simpson 1994, Navigation in the hypertext, Hypermedia Vol. 16, No. 2

[33] M. Snoeck, G. Dedene, M. Verhelst and A. Depuydt 1999, Object-Oriented Enterprise modeling with MERODE, Universitaire Pers Leuven, Leuven

[34] P. Srinivasan 1995, Incorporating Intelligent Navigational Techniques to Hypermedia, Proceedings of LAIR-MIPRO ’95, Opatija

[35] P. Stotts and R. Furuta 1989, Petri Net Based Hypertext: Document Structure with Browsing Semantics, ACM Trans. Inf. Syst. Vol. 7, No. 1

[36] M. Thüring, J. Hannemann and J. Haake 1995, Hypermedia and Cognition: Designing for comprehension, Commun. ACM Vol. 38, No. 8

[37] R. Trigg 1988, Guided Tours and Tabletops: Tools for Communicating in a Hypertext Environment, ACM Trans. Office Inf. Syst. Vol. 6, No. 4



BIOGRAPHY

Copyright 2000 ACM

Permission to make digital or hard copies of all or part of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies bear this notice and the full citation on the first page. To copy otherwise, to republish, to post on servers or to redistribute to lists, requires prior specific permission and or fee.
SAC 2000 March 19-21 Como, Italy
(c) 2000 ACM 1-58113-239-5/00/003>...>$5.00

Wilfried Lemahieu is a post-doctoral researcher at the Katholieke Universiteit Leuven, Belgium. He holds a Ph. D. in Applied Economic Sciences from the K.U.Leuven (1999). Besides hypermedia systems, his research interests include object-relational and object-oriented database systems, database connectivity and web-based information systems.
