Towards the Usage of Dynamic Object Aggregations as a Foundation for Composition
Gustaf Neumann
Department of Information Systems
Vienna University of Economics and BA, Austria
gustaf.neumann@wu-wien.ac.at
Uwe Zdun
Specification of Software Systems
University of Essen, Germany
uwe.zdun@uni-essen.de
Abstract:
Many current programming languages offer insufficient support for
the aggregation relationship. They do not offer a language support
for composite structures (object hierarchies, whole/part
hierarchies) on the object-level. Instead they rely on techniques,
like embedding or referencing through pointers, which do not fully
incorporate the semantics of aggregation. As a superior technique we
present the language construct dynamic object aggregations.
Categories and Subject Descriptor:
D.2 [Software]: Software Engineering
General Terms:
Object aggregation, object composition
In almost every software system objects that are
composed out of other objects exist. In this paper we will focus on
the enhancement of the aggregation relationship, commonly found in
object-oriented design concepts, but only weakly supported by current
programming languages. Our view of the aggregation relationship
is influenced by investigations on the level of modules, like
[7], in database systems, like [13], and in
object-oriented concepts/languages, like in C++, Java,
[3], or [8].
In general we can distinguish between aggregation of descriptive
structures (aggregation of classes) and aggregation of instances
(aggregation of objects). Several languages offer aggregation of
descriptive structures through nested classes (e.g. Java, Beta, C++),
which can be used as a form of static composition, as shown in
[1].
We see aggregation as a composition technique for design and
implementation of software systems, e.g. applicable for descriptive
structures (like classes), software components, and objects. Composition means any assembly of several parts to a whole.
Composition is more general than aggregation, e.g. composition of an
object with a role or portion-object composition
[12] can be modeled/implemented through other techniques
(especially if parts share data with the whole/other parts). Note,
that the definition of composition in UML is rather comparable to our
definition of aggregation, while aggregation in UML is comparable to
our view association.
In order to implement aggregation its semantics must be strict and
automatically ensured. The language support for aggregation that we
present in this paper is implemented in the object-oriented scripting
language XOTCL
[11]. XOTCL is a language offering a dynamic object and
class system, read/write introspection, extensibility through
components, and several high-level language constructs. These include
the interception techniques per-object mixins [9] and
filters [10]. Furthermore, it provides assertions,
meta-data, nested classes, and dynamic object aggregations.
Dynamic Object Aggregations
Definition 1 (Object aggregation)
An object system supports aggregation iff every object is allowed to
aggregate other objects. The aggregated (inner) objects are part of the
aggregating (outer) objects.
The process of inserting one object into another object is called
aggregation, the inverse step is called disaggregation.Definition 2 (Object hierarchy)
Through aggregation objects form object trees (object hierarchies)
with global objects as roots. Each object is member of exactly one
object tree.
As a consequence of this definition, every aggregated object is part
of exactly one other object (which might be a global object). Another
consequence of the definition is that an object can not contain itself
(directly or transitively).Definition 3 (Dynamic object aggregation)
An object system supports dynamic aggregation iff arbitrary objects may
be aggregated or disaggregated at arbitrary times during execution.
The opposite of dynamic aggregation is static aggregation, which
permits only the creation and deletion of aggregates, but
not the dynamic change of the aggregation in an already created
structure. The following operations are used to construct/modify an
object hierarchy:
- Object creation: Every object is created with an identifier that is unique in the scope where it was created.
- Object hierarchy restructuring:
A copy/move/delete operation works on the subtree of the object hierarchy
starting with the named object.
The restructuring operations affect an object and all its contained
objects. These operations may not violate the tree property of the object
hierarchy.
As an example we model video films. Default part of each film is an
intro. Therefore the property object is aggregated in the constructor
init:
Class Film
Class Intro
Film instproc init args { Intro [self]::intro }
Using the Class command the two new classes are
created. Afterwards the constructor of the class Film
aggregates a new object intro for each new film. All
objects are accessible through a fully qualified name containing
``::'' as separators. But in the common cases the explicit full
qualification is not necessary, because in XOTCL methods, the
current object can be accessed via the self-command, which is the
reference to the current object. E.g. a certain film starWars gets
an object starWars::intro automatically:
Film starWars
The implied constraints of the dynamic aggregation relationship are
preserved automatically. A part of a video film we record from TV may be
commercials, which are not default ingredients of films. Therefore, we
aggregate them dynamically.
Class Commercials
Commercials starWars::commercial1
All relationships are dynamically changeable. At arbitrary times
during run-time a new object may be aggregated or destroyed. E.g. if
we want to cut the commercials from our star wars film copy, we model the
situation by:
starWars::commercial1 destroy
Often an aggregated object is not destroyed but moved into another
aggregating object. The XOTCL method move provides this
functionality. Another common behavior is implemented by the copy
method which clones the actual object to a destination object. The two
methods have the syntax:
objName move destination
objName copy destination
E.g. if we want to reuse an imperial march object of star wars for
star wars 2, we can just copy the object:
starWars::imperialMarch copy starWars2::imperialMarch
Information about the current aggregation relationship of objects can be
obtained through introspection using the info method with the
following syntax:
objName info children
objName info parent
E.g. a song player can ask the object whether imperialMarch is
part of the film object or not, before it tries to play the song.
In the previous sections we the presented language construct with its
implied semantics. Now we will present some of our current research
topics, where we use the language construct as a composition
technique.
Sharing Aggregated Objects
An intrinsic property of the aggregation according to the definition
in Section 2 is that an object may only be part of one
aggregation. This notion of the aggregation can be observed in reality
very often, e.g. a room may be a part of only one building. Nevertheless,
many modeling languages permit overlapping aggregations, e.g. the
description of the whole-part pattern in [4] names the
ability to share parts as an advantage of the pattern.
Despite the violation of the semantics of aggregation-/part of
relationship, as it is used in the every day life (and defined in
Section 2), there are several reasons for sharing
aggregated objects. Often one and the same object is part of several
orthogonal hierarchies. E.g. songs that are part of several films may
be also part of a song collection. Often sharing is necessary for
other reasons, like saving of storage, as in the flyweight pattern
[6].
A mechanism enabling sharing, but differing from normal aggregations,
would resolve this contradiction. Here, a link object adapts to the
``real'' aggregated object (as in the adapter pattern [6]). But
a conventional implementation that explicitly forwards all calls
suffers from the necessity to change all link objects if the real
object changes. This is elaborate and error prone. A better solution
is to use an interception technique, like filters [11] that
automatically adapts all requests to the real object.

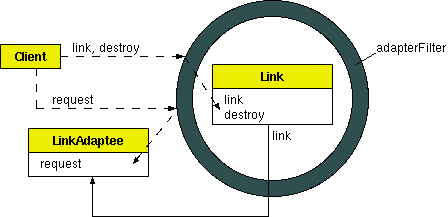

Figure 1:
Link Realized through an Adapter Filter
|
Figure 1 shows the behavior of a link in general. The link
contains a reference to an adaptee, named link. A special
getter/setter instance method, also named link, is capable of
changing this reference. Beneath this method only the destructor
destroy reaches the link object. All other requests are adapted
to the link's adaptee (the ``real'' object) automatically and
transparently. As an example we can reuse a song from a film in a song
collection:
Link songCollection::march1 -link starWars::imperialMarch
Dynamic object aggregations can be used as a foundation for proper
implementation of design patterns that rely directly on aggregation,
like the composite pattern [6], the cascade pattern
[5], and the whole-part pattern [4]. In order
to language support the patterns their further semantics have to be
ensured additionally.
The composite pattern implements an aggregation hierarchy of objects
of the same base type and assumes that all calls to parent objects are
forwarded to all their children recursively. In [10] we
show how to combine dynamic object aggregation with filters and
meta-classes in order to perform these semantics automatically.
The cascade pattern describes a composite hierarchy, where a complex
whole is additionally structured through layers, which are themselves
composites. To implement cascade properly the implementation of
composite has to be enhanced with the constraint that cascaded
composites may only aggregate components of their component type. This
constraint may be implemented through assertions
[11].
The whole-part pattern represents a form of aggregation where a whole
aggregates parts of arbitrary types that form a semantic unit. The
whole aggregates its constituent components (the parts),
arranges collaboration between these, and provides a common interface,
that ensures that parts are only accessed through the whole. The pattern may
also be implemented using dynamic object aggregations. Filters,
per-object mixins, or assertions are capable of hindering clients to
access parts directly.
Other applications for the dynamic object aggregation language
construct, which we are currently investigating, are:
- Role implementation:
Roles may be implemented through per-object mixins if they should
operate on a shared data space, as shown in [9]. If
each role needs its own data space, an implementation through
aggregation can be used, as in the role-object pattern
[2]. We are currently building a framework, which
lets aggregated roles and the whole appear as an opaque object to clients.
- Meta-level composition:
In meta-object protocols a base-level is controlled by a
meta-level. Objects on the meta-level may be singular objects. Often a
structuring into a chain can be found. Further structuring into a
meta-level composer controlling its constituent parts can be achieved
through aggregation. The meta-level composer can implicitly handle
tasks, like concurrency or adaptations of meta-object
operations.
- Aggregating relationships:
In [3] the current view on aggregation is enhanced
with the notion of relations that are parts of an aggregate and
relations that are themselves aggregates, but no implementation
concept for the constructs is given. It would be interesting to
investigate in how far such a concept may be combined with a language
support for aggregation.
We have presented a new language construct called dynamic object
aggregations which language supports the widely used aggregation
relationship. This relationship is mainly used to compose objects out
of other objects. This form of composition can be found in almost
every object-oriented software system. The language construct
preserves the semantics and asserts the implied constraints of the
aggregation relationship automatically. Therefore it eases the use of
the relationship and prevents errors. Finally, we have presented an
approach for sharing aggregates, described how to implement certain
design patterns that rely on aggregation, and named open compositional
problems, which may be solved through dynamic object aggregations.
XOTCL is available from
http://nestroy.wi-inf.uni-essen.de/xotcl/.
1
G. Banavar.
Nesting as a form of composition.
In Proc. of CIOO Workshop at ECOOP, July 1996.
2
D. Bäumer, D. Riehle, W. Siberski, and M. Wulf.
The role object pattern.
In Proc. of 4th Conference on Pattern Languages of Programms
(US), 1997.
3
C. Bock and J. Odell.
A more complete model of relations and their implications:
Aggregation.
Journal of Object-Oriented Programming, 11(5), September 1998.
4
F. Buschmann, R. Meunier, H. Rohnert, P. Sommerlad, and M. Stal.
Pattern-Oriented Software Architecture - A System of Patterns.
J. Wiley and Sons Ltd., 1996.
5
T. Foster and L. Zhao.
Cascade.
Journal of Object-Oriented Programming, 11(9), Feb. 1999.
6
E. Gamma, R. Helm, R. Johnson, and J. Vlissides.
Design Patterns: Elements of Reusable Object-Oriented Software.
Addison-Wesley, 1994.
7
C. Ghezzi, M. Jazayeri, and D. Mandrioli.
Fundamentals of Software Engineering.
Prentice Hall, 1991.
8
T. Hartmann, R. Junghans, and G. Saake.
Aggregation in a behavior oriented object model.
In O. Madsen, editor, Object-Based Distributed Processing,
pages 57-77. LCNS 615, Springer-Verlag, 1992.
9
G. Neumann and U. Zdun.
Enhancing object-based system composition through per-object mixins.
In Proceedings of Asia-Pacific Software Engineering Conference
(APSEC), Takamatsu, Japan, December 1999.
10
G. Neumann and U. Zdun.
Filters as a language support for design patterns in object-oriented
scripting languages.
In Proceedings of COOTS'99, 5th Conference on Object-Oriented
Technologies and Systems, San Diego, May 1999.
11
G. Neumann and U. Zdun.
XOTCL, an object-oriented scripting language.
In Proceedings of Tcl2k: 7th USENIX Tcl/Tk Conference, Austin,
Texas, February 2000.
12
J. Odell.
Six different kinds of composition.
Journal of Object-Oriented Programming, 5(8), January 1994.
13
J. Smith and D. Smith.
Database abstractions: Aggregation and generalization.
ACM Transactions on Database Systems, 2(2), 1977.
Copyright 2000 ACM
Permission to make digital or hard copies of all or part of this work for
personal or classroom use is granted without fee provided that copies are
not made or distributed for profit or commercial advantage and that copies
bear this notice and the full citation on the first page. To copy
otherwise, to republish, to post on servers or to redistribute to lists,
requires prior specific permission and or fee.
SAC 2000 March 19-21 Como, Italy
(c) 2000 ACM 1-58113-239-5/00/003>...>$5.00
