SAC2000 Villa Olmo, Como, Italy

Task Scheduling using a Block Dependency DAG for Block-Oriented Sparse Cholesky Factorization

Heejo Lee *, Jong Kim *, Sung Je Hong*, Sunggu Lee**
*Dept. of Computer Science and Engineering
**Dept. of Electrical Engineering
Pohang University of Science and Technology
San 31 Hyoja Dong, Pohang 790-784, KOREA

1 December 1999


Task scheduling, parallel sparse matrix factorization, block-oriented Cholesky factorization, directed acyclic graph.


Block-oriented sparse Cholesky factorization decomposes a sparse matrix into rectangular sub-blocks; each block can then be handled as a computational unit in order to increase data reuse in a hierarchical memory system. Also, the factorization method increases the degree of concurrency with the reduction of communication volumes so that it performs more efficiently on a distributed-memory multiprocessor system than the customary column-oriented factorization method. But until now, mapping of blocks to processors has been designed for load balance with restricted communication patterns. In this paper, we represent tasks using a block dependency DAG that shows the execution behavior of block sparse Cholesky factorization in a distributed-memory system. Since the characteristics of tasks for the block Cholesky factorization are different from those of the conventional parallel task model, we propose a new task scheduling algorithm using a block dependency DAG. The proposed algorithm consists of two stages: early-start clustering, and affined cluster mapping. The early-start clustering stage is used to cluster tasks with preserving the earliest start time of a task without limiting parallelism. After task clustering, the affined cluster mapping stage allocates clusters to processors considering both communication cost and load balance. Experimental results on the Fujitsu parallel system show that the proposed task scheduling approach outperforms other processor mapping methods.

1. Introduction

Sparse Cholesky factorization is a computation intensive operation commonly encountered in scientific and engineering applications including structural analysis, linear programming, and circuit simulation. Much work has been done on parallelizing sparse Cholesky factorization, which is used for solving large sparse systems of linear equations. The performance of parallel Cholesky factorization is greatly influenced by the method used to map a sparse matrix onto the processors of a parallel system. Based on the mapping method, parallel sparse Cholesky factorizations are classified into the column-oriented Cholesky, the supernodal Cholesky, the amalgamated supernodal Cholesky, and the 2-D block Cholesky. The earliest work is based on the column-oriented Cholesky in which a single column is mapped to a single processor [6,13]. In the supernodal Cholesky, a supernode, which is a group of consecutive columns with the same row structure, is mapped to a single processor [3,16]. The amalgamated supernodal Cholesky uses the supernode amalgamation technique in which several small supernodes are merged into a greater supernode, and an amalgamated supernode is then mapped to a single processor [2,19]. In the 2-D block Cholesky, a matrix is decomposed into rectangular blocks, and a block is mapped to a single processor [8,20].

The recent advanced methods for sparse Cholesky factorization are based on the use of the 2-D block Cholesky to process non-zero blocks using Level 3 Basic Linear Algebra Subprograms (BLAS) [5,6]. Such a 2-D decomposition is more scalable than a 1-D decomposition and has an increased degree of concurrency [23,24]. Also, the 2-D decomposition allows us to use efficient computation kernels such as Level 3 BLAS so that caching performance is improved [19]. Even in a single processor system, block factorizations are performed efficiently [15].

There are few works reported for the 2-D block Cholesky in a distributed-memory system. Rothberg and Gupta introduced the block fan-out algorithm [20]. Similarly, Dumitrescu et al. introduced the block fan-in algorithm [8]. Gupta, Karypis, and Kumar [12] also used 2-D mapping for implementing a multifrontal method. In [18], Rothberg has shown that a block fan-out algorithm using the 2-D decomposition outperforms a panel multifrontal method using 1-D decomposition. Even though the block fan-out algorithm increases the concurrency with reduced communication volumes, the performance achieved is not satisfactory due to load imbalance among the processors. Therefore, several load balance heuristics have been proposed in [21].

However, the load balance is not the sole key parameter for improving the performance of parallel block sparse Cholesky factorization. The load balancing mapping only guarantees that the computation is well distributed among processors; it does not guarantee that the computation is well scheduled when considering the communication requirements. Thus, communication dependencies among blocks may cause some processors to wait even with balanced loads.

In this paper, we introduce a task scheduling method using a DAG-based task graph, which represents the behavior of block sparse Cholesky factorization with the exact amount of computation and communication cost. As we will show in Section 3, a task graph for sparse Cholesky factorization is different from a conventional parallel task graph. Hence we propose a new heuristic algorithm which attempts to minimize the completion time while preserving the earliest start time of each task in a graph. It has been reported that a limitation on memory space can affect the performance [26]. But we do not consider the memory space limitations, since we assume that the factorization is done on a distributed-memory system with sufficient memory to handle the work assigned to each processor. Even though there has been an effort to use DAG-based scheduling for irregular computations on a parallel system with a low-overhead communication mechanism [9], this paper presents the first work that deals with the entire framework of applying a scheduling approach for block-oriented sparse Cholesky factorization in a distributed system.

The next section describes the block fan-out method for parallel sparse Cholesky factorization. In Section 3, the sparse Cholesky factorization is modeled as a DAG-based task graph, and the characteristics of a task for this problem are summarized. Since the characteristics of this type of task are different from the conventional precedence-constrained parallel task, a new task scheduling algorithm is proposed in Section 4. The performance of the proposed scheduling algorithm is compared with the previous processor mapping methods using experiments on the Fujitsu AP1000+ parallel system in Section 5. Finally, in Section 6, we summarize and conclude the paper.

2. Block-Oriented Sparse Cholesky Factorization

This section describes the block fan-out method for sparse Cholesky factorization, which is an efficient method for distributed memory systems. The block Cholesky factorization method decomposes a sparse matrix into rectangular blocks, and then factorizes it with dense matrix operations.

2.1 Block Decomposition

The most important feature in sparse matrix factorizations is the use of supernodes [2,3]. A supernode is a set of adjacent columns in the sparse matrix, which consists of a dense triangular block on the diagonal, and identical non-zero structures in each column below the diagonal. Since supernodes represent the sparsity structure of a sparse matrix, block decomposition with supernodes makes non-zero blocks as dense as possible, and easy to handle due to shared common boundaries [20].

The performance of the factorization is improved by supernode amalgamation, in which small supernodes are amalgamated into bigger ones in order to reduce the overhead for managing small supernodes and to improve caching performance [1,2,20]. Supernode amalgamation is a process of identifying locations of zero elements that would produce larger supernodes if they were treated as non-zeros. In the following, amalgamated supernodes will be assumed by default, and will be referred to simply as supernodes.

In a given $n\times n$ sparse matrix with N supernodes, the supernodes divide the columns of the matrix (1,..,n) into contiguous subsets $(\{1,..,p_2-1\}, ~\{p_2,..,p_3-1\},..,~\{p_N,..,n\})$. The size of the i-th supernode is ni, i.e., ni=pi+1-pi and $\sum_{i=1}^N n_i = n$. A partitioning of rows and columns using supernodes produces blocks such that a block Li,j is the sub-matrix decomposed by supernode i and supernode j. Then, the row numbers of elements in Li,j are in $\{p_i,..,p_{i+1}-1\}$, and the column numbers of elements in Li,j are in $\{p_j,..,p_{j+1}-1\}$.

After the block decomposition of the sparse factor matrix, the total number of blocks is N(N+1)/2. The number of diagonal blocks is N, and all diagonal blocks are non-zero blocks. Each of the N(N-1)/2 rectangular blocks is either a zero block or a non-zero block. A zero block refers to a block whose elements are all zeros, and a non-zero block refers to a block that has at least one non-zero element.

After block decomposition using supernodes, the resulting structure is quite regular [20]. Each block has a very simple non-zero structure in which all rows in a non-zero block are dense and blocks share common boundaries. Therefore, the factorization can be represented in a simple form.

2.2 Block Cholesky Factorization

Figure 1: Sequential block Cholesky factorization.
\hspace{1cm} \= \hspace{.5cm} \...
... \> \> $L_{ij} = L_{ij} - L_{ik}L_{jk}^T$\end{tabbing}}

The sequential algorithm for block Cholesky factorization, as described in [20], is shown in Figure 1. The algorithm works with the blocks decomposed by supernodes to retain as much efficiency as possible in block computation. The block computations can be done using efficient matrix-matrix operation packages such as Level 3 BLAS [4]. Such block computations require no indirect addressing, which leads to enhanced caching performance and close to peak performance on modern computer architectures [5].

2.3 Block Operations

Let us denote the dense Cholesky factorization of a diagonal block Lkk(Step 2 in Figure 1) as bfact(k). Similarly, let us denote the operation of Step 4 as bdiv(i,k), and the operation of Step 7 as bmod(i,j,k). These three block operations are the primitive operations used in block factorization.

Even though a non-zero block has a sparse structure, we handle it as a dense structure. Since the blocks decomposed by supernodes are well-organized, such a sparse operation for blocks are rarely required [18]. Therefore, we assume that all block operations are handled with dense matrix operations.

For bfact(k), an efficient dense Cholesky factorization can be used, and bdiv(i,k) and bmod(i,j,k) are supported by the level 3 BLAS routines such as $\_TRSM()$ and $\_GEMM()$. Therefore, we can measure the total number of operations required for each block operation as follows [5].

\begin{eqnarray*}W_{bfact(k)} &=& n_k (n_k+1)(2n_k+1)/ 6 \\
W_{bdiv(i,k)} &=& n_i n_k^2 \\
W_{bmod(i,j,k)} &=& 2n_i n_j n_k

2.4 Required Number of Block Update Operations

The most computation intensive parts of block factorization are the block update operations. The block update operations, bmod(i,j,k), are performed using a doubly nested loop, and thus take most of the time required for block factorization.

The number of required block updates for block Li,j can be measured. We use the notation $\alpha_{i,j}$ to denote whether Li,j is a non-zero block or not.

\begin{displaymath}\alpha_{i,j} = \left\{
0 & \mbox{if $L_{ij}= \emptyset$ } \\
1 & \mbox{otherwise}
\end{array}\right. \end{displaymath}

Let nmod(Li,j) denote the number of required bmod() updates for Li,j. When Li,j is a rectangular block,


For a diagonal block Lj,j,

\begin{displaymath}nmod(L_{j,j}) = \sum_{k=1}^{j-1} \alpha_{j,k}.\end{displaymath}

Thus, the maximum number of updates for Li,j is j-1.

3. Task Model with Communication Costs

Since a non-zero block Li,j is assigned to a processor [20], all block operations for a block can be treated as one task. This means that a task is executed in one processor, and a task consists of several subtasks for block operations. This section describes the characteristics of tasks, and proposes a task graph that represents the execution sequence of the block factorization. The task graph, referred to as a block dependency DAG, contains the costs of computations and communications, and the precedence relationships among tasks.

3.1 Task Characteristics

A task consists of multiple subtasks depending on the required block updates, and is represented using a tree of at most 2 levels of subtasks. If a diagonal block Lj,j requires m block updates, i.e., nmod(Lj,j)=m, its corresponding task has m+1 subtasks including a bfact(j) operation. Then, the task has m parent tasks as shown in Figure 2. Let us denote the m blocks of parent tasks as Lj,k0,..,Lj,km-1, $1 \leq k_i \leq j-1$ for $0\leq i\leq m-1$. If there is no block update required for Lj,j, i.e., nmod(Lj,j)=0, then the task has no parent task and only one subtask for bfact(j).

Figure 2: Task for a diagonal block Lj,j.

Figure 3: Task for a rectangular block Li,j.

If a rectangular block Li,j requires m block updates, i.e., nmod(Li,j)=m, then the corresponding task consists of m+1 subtasks including the subtask for the bdiv(i,j) operation. The task has 2m+1 parents as shown in Figure 3. Let us refer to the 2m+1 parent blocks as Li,k0,Lj,k0, ..,Li,km-1, Lj,km-1, Lj,j. A subtask for a block update bmod(i,j,k) executes after the two parent tasks for Li,k and Lj,khave completed and sent their blocks to Li,j. Also, for a diagonal block Lj,j, only one parent for Lj,k needs to be completed before executing the bmod(j,j,k) operation.

3.2 Task Graph

We now present a task graph for block Cholesky factorization. The task graph, referred to as the block dependency DAG, contains the precedence relations of blocks and the computation and the communication costs required for each block.

Let us assume that there are v non-zero blocks in the decomposed factor matrix. Each block is represented as a single task, so that there are v tasks T1,..,Tv and

\begin{displaymath}\sum_{j=1}^{N} \sum_{i=j}^{N} \alpha_{i,j} = v.\end{displaymath}

We give a number to each block starting from the blocks in column 1 and ending at column N. For blocks in the same column, the block in the smallest row number is counted first. Such a numbering method implies that the task with the smallest number should be executed first among the precedence-constrained tasks in a processor.

Block Cholesky factorization is represented as a DAG, G=(V,E,W,C). V is a set of tasks $\{T_1,..,T_{v}\}$and |V| = v. E is a set of communication edges among tasks, and |E| = e. Wx, where $W_x\in W$, represents the computation cost of Tx. If Tx is a task corresponding to a diagonal block Lj,j, then

\begin{displaymath}W_x = W_{bfact(j)} + \sum_{k=1}^{j-1} \alpha_{j,k} W_{bmod(j,j,k)}.\end{displaymath}

Also, if Tx corresponds to a rectangular block Li,j,

\begin{displaymath}W_x = W_{bdiv(i,j)}+ \sum_{k=1}^{j-1}
\alpha_{i,k}\times\alpha_{j,k} W_{bmod(i,j,k)}.\end{displaymath}

C is a set of communication costs, and cx,y denotes the communication cost incurred along the edge $e_{x,y}=(T_x,T_y)\in E$. If Tx is the task for Li,k and Ty is the task for Li,j, then Tx needs to send the block Li,k to Ty. Therefore, we can estimate the communication cost cx,yin a message-passing distributed system as follows:

cx,y = ts + tc ni nk.

In the above equation, ts is the startup cost for sending a message and tcis the transfer cost for sending one floating point number. For most current message-passing systems, per-hop delay caused by the distance between two processors is negligible due to the use of ``wormhole'' routing techniques and the small diameter of the communication network [5].

We let parent(x) denote the set of immediate predecessors of Tx, and child(x) denote the set of immediate successors of Tx.

\begin{displaymath}parent(x) = \{ y \vert e_{y,x} \in E\}\end{displaymath}

\begin{displaymath}child(x) = \{ y \vert e_{x,y} \in E\}\end{displaymath}

Generally, the task graph G has multiple entry nodes and a single exit node. When a task consists of multiple subtasks, some of them can be executed as soon as the data is ready from the parents of the task. Thus, the time from start to finish for a task Txis not a fixed value, e.g., Wx, but rather depends on the time when the required blocks for subtasks are ready from their parents. Therefore, scheduling a task as a run-to-completion task would result in an inefficient schedule. Most previous DAG-based task scheduling algorithms assume that a task is started after all parent tasks have been finished.

There are two approaches to resolve this situation. One is designing a task model including subtasks. The other is using a block dependency DAG. The former is a complicated approach because the task model may have many subtasks and some of them may already be clustered. This task model is also difficult to handle by a scheduling algorithm. The latter uses a simple, precise task graph as a block dependency DAG. But we can also extract relevant information on all subtasks from the relations in a block dependency graph. Therefore, we devise a task scheduling algorithm using a block dependency DAG.

Figure 4: Sparse matrix decomposed using 5 supernodes.

Figure 5: Block dependency DAG for the example sparse matrix.

4. Task Scheduling using a Block Dependency DAG

Finding the optimal solution for a weighted DAG is known to be an NP-hard problem in the strong sense [22,25]. When a task of a block dependency graph consists of only one or two subtasks, the scheduling problem using the block dependency DAG is reduced to the NP-hard scheduling problem. Thus, finding an optimal scheduling of a block dependency DAG is an NP-hard problem, so that a heuristic algorithm is presented in this section.

The proposed scheduling algorithm consists of two stages: task clustering without considering the number of available processors and cluster-to-processor mapping on a given number of processors. Most of the existing algorithms for a weighted DAG also use such a framework [28]. The goal of the proposed clustering algorithm, called early-start clustering, is to preserve the earliest possible start time of a task without reducing the degree of concurrency in the block dependency DAG. The proposed cluster mapping to processors, called affined cluster mapping, tries to reduce the communication overhead and balance loads among processors.

4.1 Task Scheduling Parameters

Several parameters are used in our scheduling method. The parameters, which are measured from a given block dependency DAG, include the work required for subtasks, and their parents, the earliest start time of a task, the earliest completion time of a task, and the level of a task.

Work and Parents of Subtasks:
A task Ti requiring mi block updates consists of mi+1 subtasks. We refer the work for the mi+1 subtasks as Wi,0,Wi,1,..,Wi,mi. Then the following equation is satisfied:

\begin{displaymath}W_i = \sum_{j=0}^{m_i} W_{i,j}.\end{displaymath}

If Ti is the task for a diagonal block, then there are mi parents. The parent tasks are referred to as Tk0,Tk1,..,Tkmi-1. If Ti is the task for a rectangular block, there are 2mi+1 parents, which are referred to as Tk0,Tk1,..,Tk2mi.

Earliest Start Time of a Task:
The earliest start time of a task is defined as the earliest time when one of its subtasks is ready to run. Note that the earliest start time of a task is not the time when all required blocks for the task are received from the parent tasks, although this time has been used by general DAG-based task scheduling algorithms. The earliest start time of Ti, est(i), is defined recursively using the earliest completion time of the parent tasks. If Ti is the task for a diagonal block, then

\begin{displaymath}est(i) = \left\{
0 & \mbox{if $parent(i)...
...t(i)} (ect(k)+c_{k,i}) & \mbox{otherwise.}
\end{array}\right. \end{displaymath}

Also, if Ti is the task for a rectangular block, then

est(i) =
ect(k_0) + c_{k_0,i} & \mbox{if $p...
\end{array} \right) &

When Ti is clustered with a parent Tk, then we can omit the communication cost from Tk to Tiby setting ck,i=0. Thus, the above equations can be used in all of the clustering steps.

Earliest Completion Time of a Task:
The earliest completion time of Ti, referred to as ect(i), is the earliest possible completion time of all subtasks in Ti. To define ect(i), we use pest(i,j), which represents the earliest start time of j-th subtask ( $0\leq j \leq m_i$). If Ti is the task for a diagonal block, then

\begin{eqnarray*}ect(i) &=& pest(i,m_i) + W_{i,m_i},\\
pest(i,0) &=& est(i), \\...
\right), \\ %
pest(i,m_i) &=& pest(i,m_i-1) + W_{i,m_i-1}.

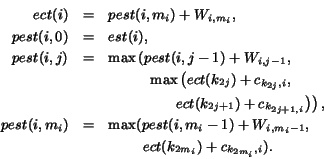

If Ti is the task for a rectangular block,

\begin{eqnarray*}ect(i) &=& pest(i,m_i) + W_{i,m_i}, \\
pest(i,0) &=& est(i), \...
..._i-1)+W_{i,m_i-1}, \\
&& ~~~~~~~ect(k_{2m_i})+c_{k_{2m_i},i}).

Level of a Task:
The level of Ti is the length of the longest path from Tito the exit task, including the communication costs along that path. The level of Ti corresponds to the worst-case remaining time of Ti. The level is used for the priority of Ti in task clustering. Level is defined as follows.

\begin{displaymath}level(i) = \left\{
W_i & \mbox{if $child(...
..._{i,k} \right) + W_i &
\end{array}\right. \end{displaymath}

4.2 Early-Start Clustering

The proposed early-start clustering (ESC) algorithm reduces the total completion time of all tasks by preserving the earliest start time of each task. ESC uses the level of a task as its priority so that a task on the critical path of a block dependency DAG can be examined earlier than other tasks. Each task is allowed to be clustered with only one of its children to preserve maximum parallelism.

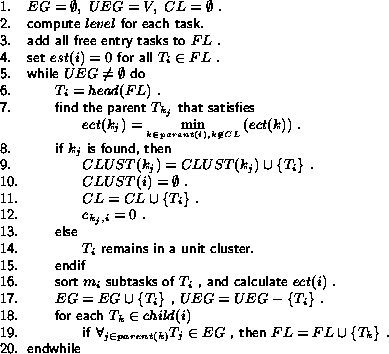

Figure 6: The early-start clustering algorithm.
\hspace{0.5cm} \= \hspace{.5cm} \= \hspace{.5...
then $FL=FL \cup \{T_k\}$ . \\
{20.}\> endwhile

The ESC algorithm uses the lists EG, UEG, CL, and FL. EG contains the examined tasks. UEG is for unexamined tasks. CL is a list of the tasks clustered with one of its children so that a task in CL cannot be clustered with other children. FL is a list of all free tasks maintained by a priority queue in UEG so that the highest level task can be examined earlier than others. CLUST(Ti) refers to the cluster for task Ti. The complete ESC algorithm is described in Figure 6.

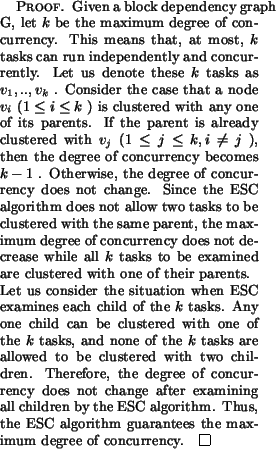

Property 1   The ESC algorithm guarantees the maximum degree of concurrency.

\begin{proof}Given a block dependency graph G, let $k$\space be
the maximum deg...
...hus, the ESC algorithm guarantees the maximum degree of concurrency.

The time complexity of ESC is as follows. To calculate the levels of tasks in Step 2, tasks are visited in post-order, and all edges are examined. Hence, the complexity of Step 2 is O(e). In the while loop, the most time consuming part is the calculation of ect(i) in Step 16, which sorts all subtasks with respect to the ready time of each subtask. Since the number of subtasks in a task is not larger than N, sorting of subtasks takes $O(N\log(N))$ time. The complexity of Step 16 is $O(vN\log(N))$ for v iterations. Thus, the overall complexity of the ESC algorithm is $O(e + v N\log(N))$.

4.3 Affined Cluster Mapping

The most common cluster mapping method is based on a work profiling method [10,17,27], which is designed only for load balancing based on the work required for each cluster. However, by considering the required communication costs and preserving parallelism whenever possible, we can further improve the performance of block Cholesky factorization.

We introduce the affined cluster mapping (ACM) algorithm, which uses the affinity as well as the work required for a cluster. The affinity of a cluster to a processor is defined as the sum of the communication costs required when the cluster is mapped to other processors. We classify the types of unmapped clusters into affined clusters, free clusters, and the heaviest cluster.

ACM finds the processor with the minimum amount of work, and allocates a cluster found by the search sequence. (The cluster with the highest affinity among affined clusters to the processor, or the heaviest cluster among free clusters, or the heaviest cluster among all unmapped clusters.) Initially, all processors have no tasks. Therefore, the heaviest free cluster is allocated first. If the processor with the minimum work has some clusters already allocated, then ACM checks whether there are affined clusters with the processor. If not, ACM checks free clusters. If there are no affined or free clusters, then the heaviest cluster among unmapped clusters is allocated to the processor.

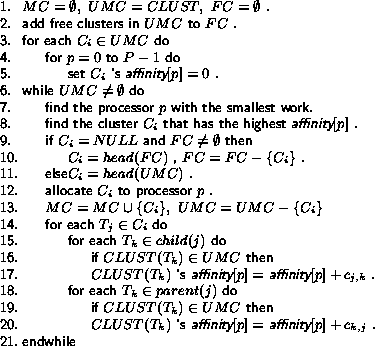

Figure 7: The affined cluster mapping algorithm.
...$ {\em affinity}$[p]+c_{k,j}$ . \\
{21.}\> endwhile

The ACM algorithm uses the lists CLUST, MC, UMC, and FC. CLUST means the entire set of clusters, and CLUST(Ti) represents the cluster containing task Ti. MC is a list of the mapped clusters, and UMC is a list of the unmapped clusters. Thus $MC\cup UMC = CLUST$. FC is a list of the free clusters. UMC and FC are maintained as priority queues with the heaviest cluster first. Each cluster has a list of affinity values for all processors. The complete ACM algorithm is described in Figure 7.

The time complexity of ACM is analyzed as follows. Let P denote the number of processors. Since the number of cluster is less than the number of tasks, the number of cluster is bounded by O(v). In Steps 3$\sim$5, O(v P) time is required for initialization. In the while loop, Step 7 takes O(P) time and Step 8 takes O(v) time; since the loop iterates for each cluster, these two steps take O(v2+vP) time. Steps 14 $\sim$ 20 are for updating the affinity values for each unmapped cluster communicating with the current cluster. In the worst case, all edges are traced twice during the whole loop, for checking parents and for checking children. Therefore, the complexity for updating affinities is O(2e). The overall complexity of the ACM algorithm is thus O(vP+v2+e).

5. Performance Comparison

The performance of the proposed scheduling method is compared with various mapping methods. The methods used for comparison are as follows.

The test sparse matrices are taken from the Harwell-Boeing matrix collection [7], which is widely used for evaluating sparse matrix algorithms. All matrices are ordered using the multiple minimum degree ordering [14], which is the best ordering method for general or unstructured problems. Supernode amalgamation [2] is applied to the ordered matrices to improve the efficiency of block operations.

Figure 8: Completion time comparison for BCSSTK14 ( n=1806,N=159).

Figure 9: Load balance comparison for BCSSTK14.

The parallel block fan-out method [20] is implemented on the Fujitsu AP1000+ multicomputer. The AP1000+ system is a distributed-memory MIMD machine with 64 cells. Each cell is a SuperSPARC processor with 64MB of main memory. The processors are inter-connected by a torus network with 25MB/sec/port. For the block operations, we used the single processor implementation of BLAS primitives taken from NETLIB. In order to measure communication costs, we use ts=500 and tc=20, which are estimated from the theoretical peak performance and benchmark tests.

The completion times of BCSSTK14 using various methods are shown in Figure 8. As P increases, the proposed method, schedule, performs well compared with the other methods. The completion time of dag does not decrease even though P increases. This is mainly due to the fact that one cluster includes all the tasks in the critical path of a block dependency DAG, and the huge cluster limits the completion time.

Figure 9 shows the load balance for all methods. The metric of load balance is

\begin{displaymath}\mbox{\em load balance} =
\frac{\mbox{\em total work}}{P \cdot \mbox{\em max work}},\end{displaymath}

where total work is the total work of all tasks and max work is the maximum amount of work assigned to any processor. As P increases, load balance decreases in all methods. Among them, balance and schedule keep the load well balanced. However, as shown in Figure 8, the completion time of schedule is shorter than that of balance. This shows that the best load balance does not guarantee the highest performance.

Figure 10: Performance comparison of mapping methods (MFLOPS).

The performance comparison of wrap, cyclic, balance, schedule are shown in Figure 10. In the average case, cyclic is 1.9 times faster than wrap. Also, balance and schedule are 2.5 and 2.8 times faster than wrap, respectively. This means that balance takes 31.6% less time than cyclic, and schedule takes 12.0% less time than balance. In the best case, schedule takes 30% less time than balance. Since the experiments have been conducted on a 2-D mesh topology, cyclic and balance can take the full advantage of their algorithmic properties. If experiments were conducted on other topologies, the gap between the performance of the proposed schedule algorithm and that of cyclic and balance would be larger. From the overall comparison, it can be seen that the proposed scheduling algorithm has the best performance.

6. Conclusion

We introduced a task scheduling approach for block-oriented sparse Cholesky factorization on a distributed-memory system. The block Cholesky factorization problem is modeled as a block dependency DAG, which represents the execution behavior of 2-D decomposed blocks. Using a block dependency DAG, we proposed a task scheduling algorithm consisting of early-start clustering and affined cluster mapping. Based on experimental results using the Fujitsu AP1000+ multicomputer, we have shown that the proposed scheduling algorithm outperforms previous processor mapping methods. Also, when we applied a previous DAG-based task scheduling algorithm to a block dependency DAG, all tasks in a critical path were clustered into a huge cluster. Thus, the completion time is always bounded by the huge cluster even when the number of processors is increased. However, the proposed scheduling algorithm has good scalability, so that its performance improves progressively as the number of processors increases. The main contribution of this work is the introduction of a task scheduling approach with a refined task graph for sparse block Cholesky factorizations.
