A Weighted Coding in a Genetic Algorithm
for the Degree-Constrained
Minimum Spanning Tree Problem

Günther R. Raidl
Institute of Computer Graphics
Vienna University of Technology
Karlsplatz 13/1861, 1040 Vienna, Austria
raidl@apm.tuwien.ac.at

Bryant A. Julstrom
Department of Computer Science
St. Cloud State University
St. Cloud, MN 56301 USA
julstrom@eeyore.stcloudstate.edu

Abstract:

The coding by which chromosomes represent candidate solutions is a fundamental design choice in a genetic algorithm. This paper describes a novel coding of spanning trees in a genetic algorithm for the degree-constrained minimum spanning tree problem. For a connected, weighted graph, this problem seeks to identify the shortest spanning tree whose degree does not exceed an upper bound tex2html_wrap_inline556. In the coding, chromosomes are strings of numerical weights associated with the target graph's vertices. The weights temporarily bias the graph's edge costs, and an extension of Prim's algorithm, applied to the biased costs, identifies the feasible spanning tree a chromosome represents. This decoding algorithm enforces the degree constraint, so that all chromosomes represent valid solutions and there is no need to discard, repair, or penalize invalid chromosomes. On a set of hard graphs whose unconstrained minimum spanning trees are of high degree, a genetic algorithm that uses this coding identifies degree-constrained minimum spanning trees that are on average shorter than those found by several competing algorithms.

Keywords: Degree-constrained minimum spanning trees, weighted coding, genetic algorithms.

1 Introduction

The coding by which chromosomes represent candidate solutions to a problem instance is a fundamental design choice in building a genetic algorithm (GA). Generally, a GA's designer may choose from several codings, some more conducive to genetic search than others.

Consider a connected, undirected graph G whose edges are labeled with numerical costs. A degree-constrained spanning tree on G is a spanning tree on G none of whose vertices has degree greater than tex2html_wrap_inline556. Identifying a minimum-cost degree-constrained spanning tree is a computationally difficult problem with applications to the design of telecommunication networks and integrated circuits. Because of its hardness, the problem is addressed by heuristic methods, including genetic algorithms.

This paper presents a novel coding for spanning trees in a GA that searches for a degree-constrained minimum spanning tree. In this coding, a chromosome is a string of weights associated with the target problem instance's vertices. These weights temporarily bias the graph's edge costs, and an extension of Prim's algorithm identifies a degree-constrained spanning tree using the biased costs; the chromosome's fitness is the cost of the spanning tree under the original, unbiased costs. The decoding algorithm enforces the degree constraint, so that all chromosomes represent valid solutions and there is no need for the GA to discard, repair, or penalize invalid chromosomes. On a set of hard graphs whose unconstrained minimum spanning trees are of high degree, a steady-state GA that uses the weighted coding identifies degree-constrained spanning trees that are on average shorter than those found by several competing algorithms.

The following sections of this paper describe the degree-constrained minimum spanning tree problem; some previous genetic codings of spanning trees; the weighted coding of spanning trees; the genetic algorithm that uses the weighted coding; and comparisons of the GA's performance with that of several other algorithms on some challenging problem instances.

Degree-Constrained  Minimum Spanning Trees

Given a connected, undirected graph G with n vertices, a spanning tree T is a subgraph of G that connects all of G's vertices and contains no cycles. When numerical costs tex2html_wrap_inline580 are associated with each edge (i,j), a minimum spanning tree (MST) is a spanning tree on G with the smallest possible total edge cost tex2html_wrap_inline586. Two well known algorithms, due to Prim [26] and Kruskal [20], identify a MST of a connected, undirected graph in polynomial time.

The degree of a vertex is the number of edges in which it participates, and the degree of a graph is the maximum degree of its vertices. A variation of the MST problem bounds the degree of the spanning tree with a constant tex2html_wrap_inline556; it seeks a spanning tree of minimum cost and degree no more than k: a k-MST. A 2-MST is a Hamiltonian path of minimum length. Finding such a path is related to the familiar traveling salesman problem and is NP-hard [12].

Often the vertices on which we seek MSTs are points in the plane, and edge costs are the Euclidean distances between these points. For this case, Monma and Suri [21] showed that there always exists a MST with degree no more than five. Papadimitriou and Vazirani [24] proved that finding a k-MST in the Euclidean plane is NP-hard when k = 3, and conjectured that it remains NP-hard when k = 4. More generally, the costs associated with the graph's edges are arbitrary; that is, we do not think of the vertices as residing in the plane, and the costs between them need not satisfy the triangle inequality. In this case, a minimum spanning tree on n points may have degree up to n - 1.

While polynomial-time heuristics exist for finding k-MSTs in the plane [11, 31], they are less effective on the general problem. One simple but effective heuristic is due to Narula and Ho [22]: They modified Prim's algorithm so that at each step it includes the cheapest eligible edge--one connecting a vertex currently in the (partial) spanning tree with one not yet connected--that does not violate the degree constraint. We refer to this heuristic as k-Prim.

Genetic  Codings  of  Spanning Trees

A deceptively appealing coding of spanning trees for genetic search is based on Prüfer's proof of Cayley's Formula, which identifies the number of distinct spanning trees on a complete graph of n vertices as tex2html_wrap_inline610 [7], [10, pp. 103-104,]. The proof establishes a one-to-one correspondence between spanning trees on n vertices and strings of length n-2 over an alphabet of n symbols by describing algorithms that derive a tree from its string and vice versa [10, pp. 104-106,].

Despite its elegance, the Prüfer coding is problematic in GAs. As several observers have pointed out, symbols' meanings depend on their predecessors. Patterns of symbols do not represent consistent substructures of spanning trees, so that crossover may generate offspring whose trees do not resemble the trees of their parents, and the mutation of even one symbol may change the represented tree radically [23, 30].

Nonetheless, several researchers have used the Prüfer coding to represent candidate solutions in GAs for spanning tree problems. For example, Abuali, Schoenefeld, and Wainwright [1] used the Prüfer coding in a GA for the probabilistic minimum spanning tree problem. Operators included circular left shift, swap of two random positions, and random modification of a symbol. Zhou and Gen [32] presented a Prüfer-coding-based GA for the k-MST problem. This algorithm applied conventional genetic operators: uniform crossover and mutation by randomly modifying a symbol. Solutions that violated the degree constraint were repaired.

Kim and Gen [17] extended the Prüfer coding in a GA for a network design problem. A Prüfer string represented a spanning tree of service centers, and a second string indicated clusters of users the centers served. Again, chromosomes whose trees violated the problem's degree constraint were repaired. Gargano, Edelson, and Koval [13] extended the Prüfer coding with permutations in a GA for the time-dependent minimum spanning tree problem, in which edge costs depend on when the edges are included in the spanning tree; the Prüfer string represented a spanning tree, and the permutation the order in which vertices, and thus edges, were added to the tree.

Other projects have used more general codings whose represented structures can include spanning trees, such as adjacency matrices [14], indexes into lists of edges [8], and edge codings in which when the value of the tex2html_wrap_inline620 symbol is j, the represented tree contains the edge (i,j) [3].

Knowles and Corne [18] described a GA for the k-MST problem. In their algorithm, chromosomes are sequences of integer values that influence the order in which k-Prim connects vertices to the growing spanning tree. Experiments on large, misleading graphs indicated the superiority of this approach to a dual simplex heuristic proposed by Boldon et al. [4]. Section 6 below compares our GA with both the algorithm of Corne and Knowles and the heuristic of Boldon et al.

4 The Weighted Coding

 figure67
Figure 1:   (a) A set of points in the plane and their coordinates; (b) a minimum cost spanning tree (of length 280.78) on the points; and (c) the spanning tree of degree 3 on the points corresponding to the chromosome (1.3, 0.4, 1.8, 1.5, 0.9, 0.8, 1.6, 2.1, 0.7, 0.5, 0.6, 1.8, 7); it has length 359.44. The chromosome's last entry indicates that k-Prim began building the tree at vertex 7.

The coding the present GA employs is based on an ingenious coding of spanning trees described by Palmer and Kershenbaum [23]. They encoded spanning trees as strings of numerical weights associated with the graph's vertices. To identify the tree such a chromosome represents, each weight tex2html_wrap_inline638 is temporarily added to the costs of every edge in which vertex i participates:


equation98

Prim's algorithm then identifies a spanning tree from the biased costs. The chromosome's fitness is the cost of the tree using the original costs. Initial chromosomes consist of weights chosen at random from a uniform distribution. Mutation randomly resets a weight, and traditional crossover operators like uniform crossover can recombine chromosomes.

Palmer and Kershenbaum found that a weight-coded GA outperformed a good heuristic on the optimal communications spanning tree problem, and Abuali, Schoenefeld, and Wainwright [2] obtained better results with both a weighted coding and an edge coding than with the Prüfer coding in a GA for the probabilistic minimum cost spanning tree problem.

More generally, researchers have used weighted codings in GAs for a variety of combinatorial problems. These include the rectilinear Steiner problem [15], the shortest common supersequence problem [5], the 3-satisfiability problem [9], the traveling salesman problem [16], and the multiple container packing problem [27]. In each of these, chromosomes are strings of weights that temporarily bias parameters of the problem instance. A decoding algorithm identifies the structure a chromosome represents using the biased parameters, and the chromosome's fitness is that structure's fitness under the original parameters. Searching the space of weights implements a search of the target problem's search space.

One of us investigated biasing techniques in a weight-coded GA for the multiconstraint knapsack problem [28]. He found that multiplying parameters by weights selected from a log-normal distribution led to better solutions more quickly than did adding weights chosen from a uniform distribution.

We adopt the multiplicative scheme here. Weights are chosen from the distribution tex2html_wrap_inline642, where tex2html_wrap_inline644 is the normal distribution with mean 0 and variance 1, and tex2html_wrap_inline646 is a parameter called the biasing strength. Edge costs are biased multiplicatively by these weights:


equation112

The k-Prim heuristic, applied to the biased edge costs, identifies the spanning tree a chromosome of such weights represents.

k-Prim grows a spanning tree from a start vertex, and in general it will not identify the same tree from different start vertices. The start vertex is particularly influential when a graph's underlying MST contains vertices of high degree. Clearly, fixing the start vertex might restrict the GA's search to poorer regions of the search space, so the coding is extended with an integer that represents the start vertex. The GA then adapts this choice along with the weights.

For example, Figure 1(a) depicts a set of 12 points in the plane and lists their coordinates. Figure 1(b) shows an unconstrained MST on these points; it has degree 5 and cost 280.78. A weighted chromosome that represents a 3-MST on these points consists of 12 float values and an integer, say


displaymath630

Vertex 1 has weight 1.3, vertex 2 has weight 0.4, and so on. The distance between vertices 1 and 2 is


displaymath631

so the biased distance between them is


displaymath632

The chromosome's last entry specifies vertex 7 as the start vertex. Figure 1(c) shows the tree k-Prim (with k = 3) identifies from the chromosome; using unbiased costs, it has cost 359.44.

Because k-Prim always identifies a spanning tree with degree no more than k, all chromosomes represent valid solutions, and there is no need for the GA to implement any of the usual constraint-handling strategies: discarding, repairing, or penalizing invalid chromosomes.

5 The Genetic Algorithm

The weighted coding of spanning trees was implemented in an otherwise conventional steady-state GA. The algorithm selects chromosomes to be parents in tournaments of size three, and generates offspring from them via uniform crossover and a mutation that resets each gene to a new random value with a small probability (position-by-position mutation). Each new chromosome replaces the population's current worst chromosome, with one exception: To preserve phenotypic diversity, the GA discards any new chromosome that encodes a spanning tree already represented in the population [29].

The GA initializes its population with randomly generated chromosomes, except for one in which all the weights are 1.0 and only the starting vertex is selected at random. This chromosome represents the unbiased case and decodes to a spanning tree that k-Prim would find on its own. Early experiments confirmed that seeding the population in this way dramatically speeds the optimization process. Other preliminary experiments seeded the population with several chromosomes whose weights were all 1.0 but whose start vertices differed. This technique reduced the population's diversity and led to inferior results.

In the tests the following section describes, tex2html_wrap_inline646 was set to 1.5, the GA's population held 100 chromosomes, and the probability of mutating any one weight was 2/n, where n is the number of vertices in the target graph.

6 Experimental Comparisons

Boldon et al. [4] observed that when a large matrix of edge-costs is generated at random, the degree of a MST on the resulting graph rarely exceeds 3 or 4. They constructed more demanding problem instances from MSTs of high degree. Knowles and Corne [18] applied this approach to generate two sets of challenging k-MST instances, which we adopted to test the weight-coded GA.

The first problem set contains nine complete graphs of 50 to 200 vertices. Their unconstrained MSTs have degree 14 or 15. k-MSTs of maximum degree k = 4 were sought with k-Prim alone, the dual simplex method of Boldon et al., Knowles and Corne's GA, and the weight-coded GA. Both genetic algorithms were run 20 times through 10,000 evaluations on each instance; the deterministic heuristics were, of course, each applied once.

  table130
Table 1: 4-MST results for 9 randomly generated graphs (tex2html_wrap_inline676). k-Prim indicates the k-Prim heuristic alone; DS the dual simplex method of Boldon et al.; K-GA the genetic algorithm of Knowles and Corne; and W-GA the weight-coded GA.

  figure148
Figure 2: Average 4-MST results for the 9 randomly generated graphs (tex2html_wrap_inline676).

Table 1 summarizes the results of these trials, reported as ratios of the lengths of shortest 4-MSTs to the lengths of unconstrained MSTs. Figure 2 shows these average results graphically. The two GAs performed almost identically, slightly better than k-Prim alone and the dual simplex method.

The second problem set consists of nine graphs made more difficult by the inclusion of edge weights intended to mislead heuristics. Again the graphs contain from 50 to 200 vertices; their unconstrained MSTs have degrees from 9 to 13. The algorithms sought k-MSTs with k = 5.

  table159

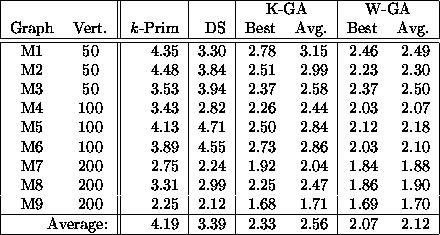

Table 2: 5-MST results for 9 misleading random graphs (tex2html_wrap_inline676). Again, k-Prim indicates the k-Prim heuristic alone; DS the dual simplex method of Boldon et al.; K-GA the genetic algorithm of Knowles and Corne; and W-GA the weight-coded GA.

  figure178

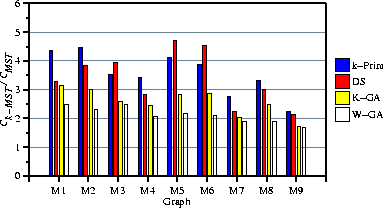

Figure 3: Average 5-MST results for the 9 misleading random graphs (tex2html_wrap_inline676).

Table 2 and Fig. 3 summarize the results of these trials. On these graphs, k-Prim performed poorly, the dual simplex method better, and the two GAs best. On average, the weight-coded GA identified significantly shorter trees than did Knowles and Corne's GA, indicating that the weight-coded GA more often escapes from local minima; the relative costs tex2html_wrap_inline676 are 17% smaller for the weight-coded approach. Further, the best solutions of the weight-coded GA are usually better and, except for M9, never worse then the corresponding best solutions of Knowles and Corne's GA.

  figure189
Figure 4: The effect of the biasing strength tex2html_wrap_inline646 on the weight-coded GA's average performance.

Figure 4 shows how the biasing strength tex2html_wrap_inline646 affects the quality of the weight-coded GA's solutions. Each value in the graph was determined by averaging the results of 20 runs on each of the misleading problems M1 to M9. For values of tex2html_wrap_inline646 less than 0.5, the weighted coding is not able to represent solutions significantly different from those k-Prim would find on its own. With larger tex2html_wrap_inline646, the GA can examine more of the problem's search space. As tex2html_wrap_inline646 increases above 2.0, the solution quality again decreases; the search becomes more diffuse. Choosing tex2html_wrap_inline718 yields the best results on average, and in general it is better that tex2html_wrap_inline646 be too large than too small.

The weight-coded GA was also applied to the 9-vertex graph used by Zhou and Gen [32]. Their Prüfer-coded GA found an optimal solution 67% of the time in 25000 evaluations. In contrast, this problem turned out to be trivial for the weight-coded GA, which usually found an optimal solution in the initial population.

7 Conclusions

This paper has described the k-MST problem and a steady-state GA that encodes candidate solutions to the problem in a novel way. Each chromosome is a string of weights associated with the vertices of the target graph. These weights temporarily bias the graph's edge costs, and a modification of Prim's algorithm identifies the degree-k spanning tree a chromosome represents; this tree is evaluated using the original edge costs. Each chromosome also encodes a starting vertex for the decoding algorithm. In tests on hard and misleading k-MST instances, the weight-coded GA found degree-constrained spanning trees that are on average shorter than those identified by other heuristics.

More generally, this investigation and others illustrate the utility of weighted codings in GAs for combinatorial problems, particularly those with constraints. When, as here, the decoding algorithm enforces constraints, all chromosomes represent valid solutions, and there is no need to discard, repair, or penalize invalid chromosomes.

References

1
F. N. Abuali, D. A. Schoenefeld, and R. L. Wainwright. Designing telecommunications networks using genetic algorithms and probabilistic minimum spanning trees. In E. Deaton, D. Oppenheim, J. Urban, and H. Berghel, editors, Proceedings of the 1994 ACM Symposium on Applied Computing, pages 242-246, New York, 1994. ACM Press.

2
F. N. Abuali, R. L. Wainwright, and D. A. Schoenefeld. Determinant factorization: A new encoding scheme for spanning trees applied to the probabilistic minimum spanning tree problem. In L. J. Eshelman, editor, Proceedings of the Sixth International Conference on Genetic Algorithms, pages 470-477, San Mateo, CA, 1995. Morgan Kaufmann Publishers.

3
F. N. Abuali, R. L. Wainwright, and D. A. Schoenefeld. Solving the three-star tree isomorphism problem using genetic algorithms. In K. M. George, J. H. Carroll, E. Deaton, D. Oppenheim, and J. Hightower, editors, Proceedings of the 1995 ACM Symposium on Applied Computing, pages 337-343, New York, 1995. ACM Press.

4
B. Boldon, N. Deo, and N. Kumar. Minimum-weight degree-constrained spanning tree problem: Heuristics and implementation on an SIMD parallel machine. Technical Report CS-TR-95-02, Department of Computer Science, University of Central Florida, Orlando, FL, 1995.

5
J. Branke and M. Middendorf. Searching for shortest common supersequences by means of a heuristic-based genetic algorithm. In J. T. Alander, editor, Proceedings of the Second Nordic Workshop on Genetic Algorithms and their Applications, pages 105-113, University of Vaasa, Vaasa, Finland, 1996.

6
S. Brave and A. S. Wu, editors. Late Breaking Papers at the 1999 Genetic and Evolutionary Computation Conference, Orlando, FL, 1999.

7
A. Cayley. A theorem on trees. Quarterly Journal of Mathematics, 23:376-378, 1889.

8
B. Dengiz, F. Altiparmak, and A. E. Smith. Local search genetic algorithm for optimization of highly reliable communications networks. In T. Bäck, editor, Proceedings of the Seventh International Conference on Genetic Algorithms, pages 650-657, San Francisco, CA, 1997. Morgan Kaufmann Publishers.

9
A. E. Eiben and J. K. van der Hauw. Solving 3-SAT by GAs adapting constraint weights. In Proceedings of 1997 IEEE International Conference on Evolutionary Computation, pages 81-86, Indianapolis, IN, 1997. IEEE Press.

10
S. Even. Algorithmic Combinatorics. The Macmillan Company, New York, 1973.

11
S. Fekete, S. Khuller, M. Klemmstein, B. Raghavachari, and N. Young. A network-flow technique for finding low-weight bounded-degree spanning trees. Journal of Algorithms, 24:310-324, 1997.

12
M. R. Garey and D. S. Johnson. Computers and Intractability: A Guide to the Theory of NP-Completeness. W. H. Freeman, New York, 1979.

13
M. L. Gargano, W. Edelson, and O. Koval. A genetic algorithm with feasible search space for minimal spanning trees with time-dependent edge costs. In Koza et al. [19], page 495.

14
M. Gen, G. Zhou, and M. Takayama. A comparative study of tree encodings on spanning tree problems. In Proceedings of the 1998 IEEE International Conference on Evolutionary Computation Proceedings, pages 33-38, Anchorage, AL, 1998. IEEE Press.

15
B. A. Julstrom. Representing rectilinear Steiner trees in genetic algorithms. In K. M. George, J. H. Carroll, D. Oppenheim, and J. Hightower, editors, Proceedings of the 1996 ACM Symposium on Applied Computing, pages 245-250, New York, 1996. ACM Press.

16
B. A. Julstrom. Insertion decoding algorithms and initial tours in a weight-coded GA for TSP. In Koza et al. [19], pages 528-534.

17
J. R. Kim and M. Gen. Genetic algorithm for solving bicriteria network topology design problem. In Porto [25], pages 2272-2279.

18
J. Knowles and D. Corne. A new evolutionary approach to the degree constrained minimum spanning tree problem. IEEE Transactions on Evolutionary Computation, to appear.

19
J. R. Koza, W. Banzhaf, K. Chellapilla, K. Deb, M. Dorigo, D. B. Fogel, H. Iba, and R. L. Riolo, editors. Genetic Programming 1998: Proceedings of the Third Annual Conference, Madison, Wisconsin, 1998. Morgan Kaufmann.

20
J. B. Kruskal. On the shortest spanning subtree of a graph and the traveling salesman problem. Proceedings of the American Mathematics Society, 7(1):48-50, 1956.

21
C. Monma and S. Suri. Transitions in geometric minimum spanning trees. Discrete and Computational Geometry, 8(3):265-293, 1992.

22
S. C. Narula and C. A. Ho. Degree-constrained minimum spanning trees. Computers and Operations Research, 7:239-249, 1980.

23
C. C. Palmer and A. Kershenbaum. Representing trees in genetic algorithms. In Proceedings of the First IEEE Conference on Evolutionary Computation, pages 379-384, Orlando, FL, 1994. IEEE Press.

24
C. H. Papadimitriou and U. V. Vazirani. On two geometric problems related to the traveling salesman problem. Journal of Algorithms, 5:231-246, 1984.

25
V. W. Porto, editor. Proceedings of the 1999 IEEE Congress on Evolutionary Computation, Piscataway, NJ, 1999. IEEE Press.

26
R. Prim. Shortest connection networks and some generalizations. Bell System Technical Journal, 36:1389-1401, 1957.

27
G. R. Raidl. A weight-coded genetic algorithm for the multiple container packing problem. In J. Carroll, H. Hiddad, D. Oppenheim, B. Bryant, and G. B. Lamont, editors, Proceedings of the 1999 ACM Symposium on Applied Computing, pages 291-296, New York, 1999. ACM Press.

28
G. R. Raidl. Weight-codings in a genetic algorithm for the multiconstraint knapsack problem. In Porto [25], pages 596-603.

29
G. R. Raidl and J. Gottlieb. On the importance of phenotypic duplicate elimination in decoder-based evolutionary algorithms. In Brave and Wu [6], pages 204-211.

30
F. Rothlauf and D. Goldberg. Tree network design with genetic algorithms - an investigation in the locality of the Pruefernumber encoding. In Brave and Wu [6], pages 238-243.

31
M. Savelsbergh and T. Volgenant. Edge exchanges in the degree-constrained minimum spanning tree problem. Computers and Operations Research, 12(4):341-348, 1985.

32
G. Zhou and M. Gen. Approach to degree-constrained minimum spanning tree problem using genetic algorithm. Engineering Desing & Automation, 3(2):157-165, 1997.
